    Light Source

    COOL LED




    OEM service

    - Optical design
    - Electronic design
    - Software interface
    - 3D product design
    - Manufacture
    Accessories

    - Light delivery
    - Combiners
    - Dichroic mirrors
    - Communication

    Adaptors

    - Select for microscope
    - Wide range available
    - Current and older models
    - Custom adaptors available

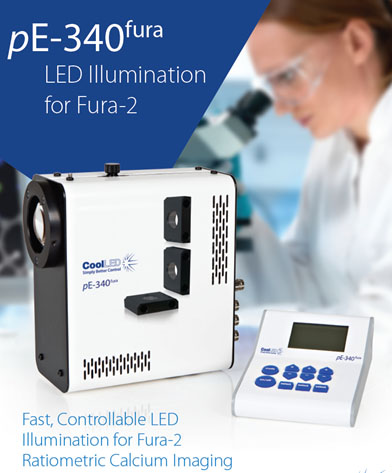

    New pE-340fura









    Fast, Controllable LED Illumination for Fura-2 Ratiometric Calcium Imaging

    Utilising the successful pE-300 Series platform, the pE-340fura is a bespoke LED Illuminator for Fura-2 ratiometric calcium imaging, which also supports everyday fluorescence microscopy in a compact and affordable package. The 340nm and 380nm LED illumination system provides the optimum excitation wavelengths for Fura-2-based calcium imaging allowing high-precision, stable, high-throughput imaging with video-rate time resolution.

    .
    pE-300 Series

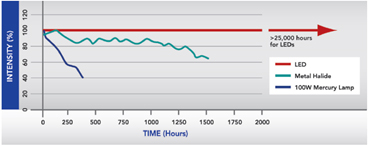

    LEDs last longer

    pE-300 Series for Fluorescence
    Environment & Safety
    - Mercury-free
    - Energy Efficient: 80% less power
    - Long lifetime (25,000 operating hours)
    - No bulb replacements
    - Reduced risk of eye damage
    - Quiet operation
    - No special disposal regulations or issues




    pE-300ultra - Fast Controllable Illumination

    Features pE-300lite
    pE-300white pE-300ultra
    PowerFWHM
    V V
    V

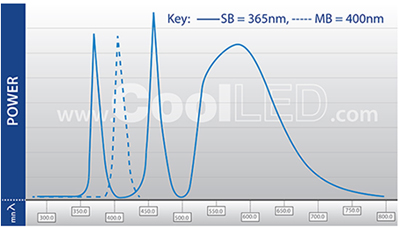

    Broad spectrum V V V
    Simple to fit and use V V V
    Instant on/off V V V
    No bulb replacement V V V
    Direct or Light Guide delivery options V V V
    Long lifetime V V V
    Stable & Repeatable - 0-100% intensity control V V V
    Filter set compatibility V V V
    Mercury free   V V
    Individual channel intensity control   V V
    Individual channel selection   V V
    Integration with imaging software   V V
    Global remote triggering (TTL, microsecond)   V V
    Individual channel triggering (TTL, microsecond)     V

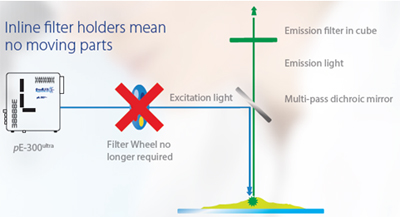

    Removable inline filter holders     V
    Sequence Runner     V

    pE-4000 LED System
    Ideal for Advanced Research

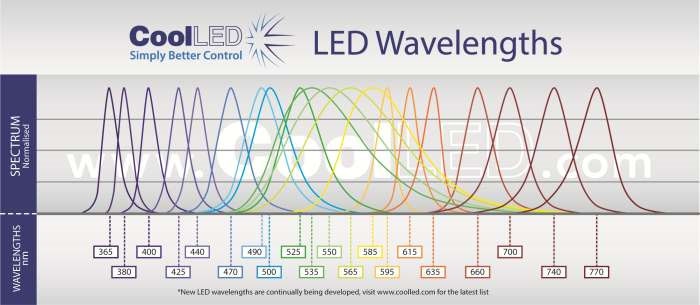

    16 Selectable Wavelengths
    No modularity • Compatible with all filter sets


    Power values
    LED Wavelengths are divided across 4 channels with
    each channel having individual control.
    Broadest Spectrum • Brightest LEDs


    CHANNEL 1
    CHANNEL 1
    CHANNEL 1
    CHANNEL 1
    λ Power FWHM
    λ Power FWHM
    λ Power FWHM
    λ Power FWHM
    365 nm 30 mW 10 nm 460 nm 241 mW 20 nm 525 nm 35 mW 31 nm 635 nm 136 mW 16 nm
    385 nm 101mW 10 nm 470 nm 167mW 20 nm 550 nm 245 mW 85 nm 660 nm 193 mW 19 nm
    405 nm 188mW 18 nm 490 nm 87 mW 31 nm 580 nm 236 mW 85 nm 740 nm 76 mW 39 nm
    435 nm 170 mW 17 nm 500 nm 58 mW 29 nm 595 nm 37 mW 15 nm 770 nm 18 mW 53 nm

    LDB100F Brightfield LED with 550nm Filter

    Key features:
    - 10,000 hours operating lifetime
    - Filter in for fluorescence applications eliminating unwanted background
      fluorescence
    - Filter out for brightfield applications, full spectrum
    - Fits most modern upright and inverted microscope systems
    - Replaces standard lamphouses
    - Choose between manual intensity, TTL control or on/off which eliminates the
      need for shutter mechanisms
    - Compatible with ProScan and OptiScan controllers
    - Adapters are available for most modern microscopes
    - Can be utilized as a stand alone light source
    - <140 microseconds on/off speed using TTL

    Lumen 100 LED Illuminator

    Key features:
    High light quality
    - Attaches directly to the microscope for highly efficient light transmission.
    - Light intensity can be precisely controlled in 1% increments.
    - Wide range of wavelengths available
    - Excitation filters, combiners and dichroic filters available
